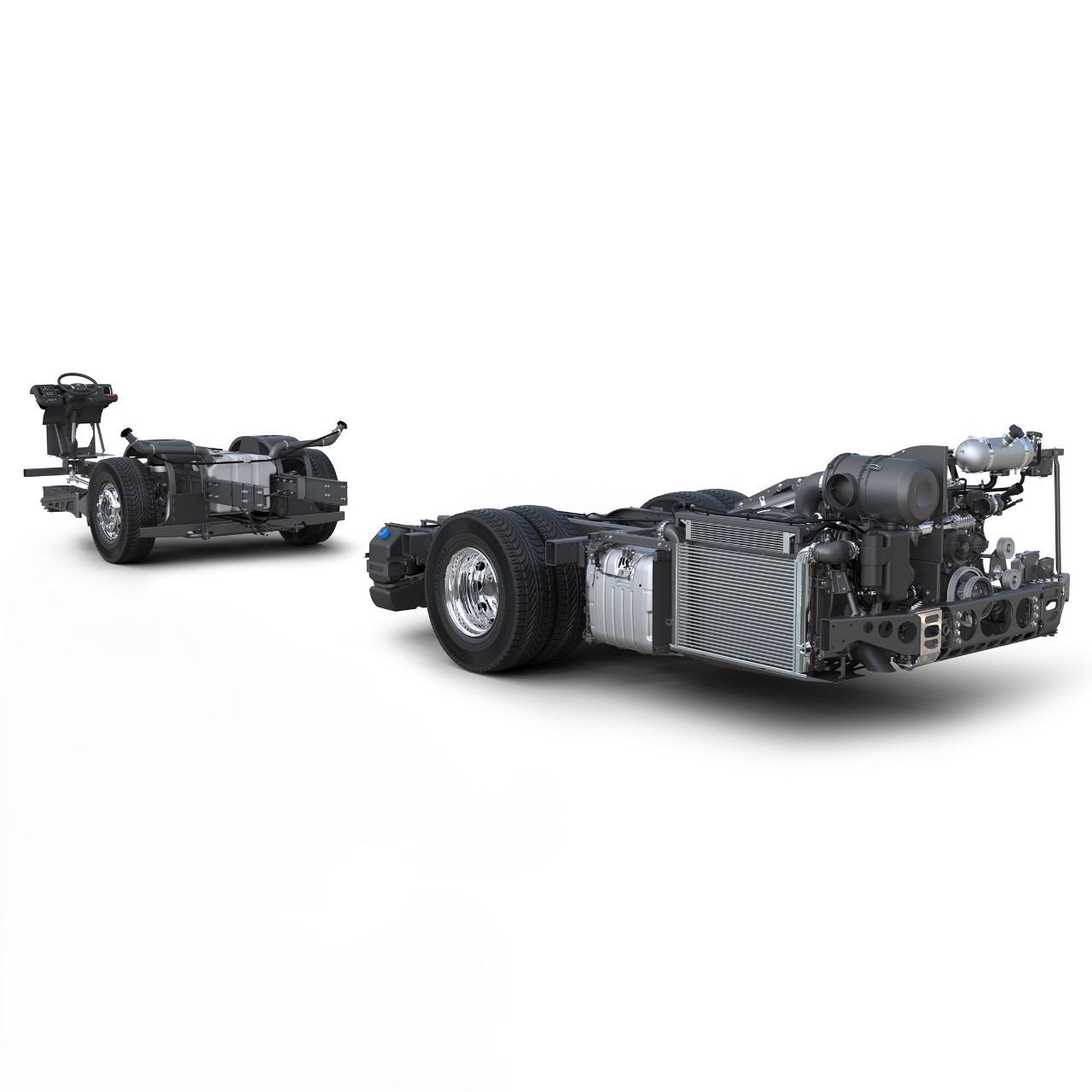

Scania K-chassis HF Urban

High floor buses for urban transport operations

Powertrain options

The high floor Scania K-chassis offers a wide range of energy efficient and reliable powertrains suitable for operations in and between urban areas.

Powertrain type	Output (continuous)	Installed energy	Usable energy	Charging options	Wheel configuration
Electric machine	Up to 330 kW	Up to 535 kWh	Up to 480 kWh	CCS Type 2 Up to 325 kW (500 A)	4x2, 6x2*4
Gearbox Integrated 2- or 4-speed gearbox for optimised energy consumption.

Powertrain type	Output (continuous)	Installed energy	Usable energy	Charging options	Wheel configuration

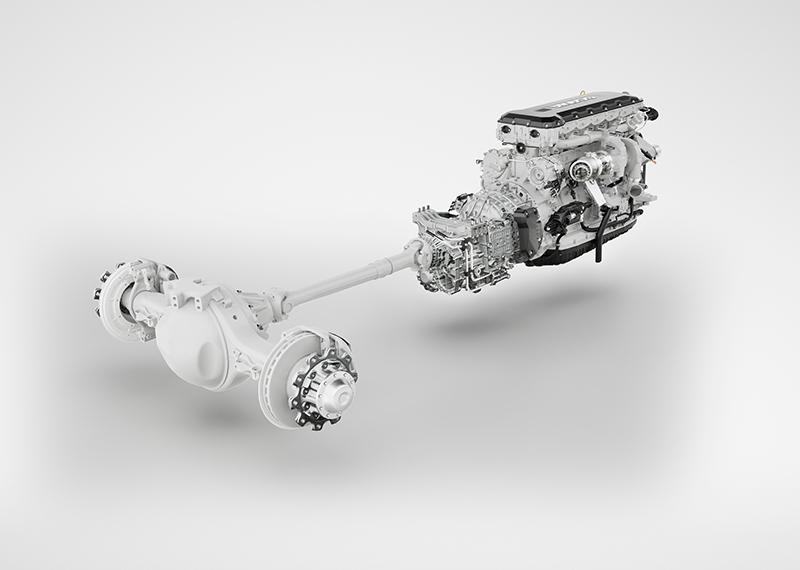

Electric machine + 13-litre Super 420 Hp	2x145 kW	89 kWh	80 kWh	CCS Type 2 Up to 130 kW (200 A)	4x2, 6x2*4
Gearbox Integrated 6-speed gearbox for optimised energy consumption.

All powertrain options have SCR emissions control.

Displacement	Output	Torque	Fuel options
7-litre	280 Hp (206 kW)	1200 Nm	Biodiesel/FAME, HVO, diesel
9-litre	280 Hp (206 kW)	1400 Nm	HVO, diesel
9-litre	320 Hp (235 kW)	1600 Nm	Biodiesel/FAME, HVO, diesel
9-litre	360 Hp (265 kW)	1700 Nm	Biodiesel/FAME, HVO, diesel
11-litre Super	350 Hp (257 kW)	1800 Nm	HVO, diesel
11-litre Super	390 Hp (287 kW)	2000 Nm	Biodiesel/FAME, HVO, diesel
11-litre Super	430 Hp (316 kW)	2200 Nm	Biodiesel/FAME, HVO, diesel
13-litre	370 Hp (272 kW)	1900 Nm	HVO, diesel
13-litre	410 Hp (302 kW)	2150 Nm	Biodiesel/FAME, HVO, diesel
13-litre Super	420 Hp (309 kW)	2300 Nm	HVO, diesel
Gearboxes 6-speed fully automatic gearbox (ZF EcoLife 2). Start/stop function, acceleration control, integrated retarder. 12-speed manual automated gearbox with Scania Opticruise and retarder (optional). Start/stop function, acceleration control. New gearbox for Super engines: 14-speed manual automated gearbox with Scania Opticruise and retarder (optional).

All powertrain options have EGR emissions control.

Displacement	Output	Torque	Fuel options
9-litre	280 Hp (206 kW)	1350 Nm	Biogas, natural gas
9-litre	340 Hp (250 kW)	1600 Nm	Biogas, natural gas
13-litre	410 Hp (302 kW)	2000 Nm	Biogas, natural gas
Gearboxes 6-speed fully automatic gearbox (ZF EcoLife 2). Start/stop function, acceleration control, integrated retarder. 12-speed manual automated gearbox with Scania Opticruise and retarder (optional). Start/stop function, acceleration control.

NOTE: The above does not include all available options. Engines with higher output are also available under K-chassis HF (Travel).

Axles

The high floor Scania K-chassis is available in several variants enabling it to meet different operational demands.

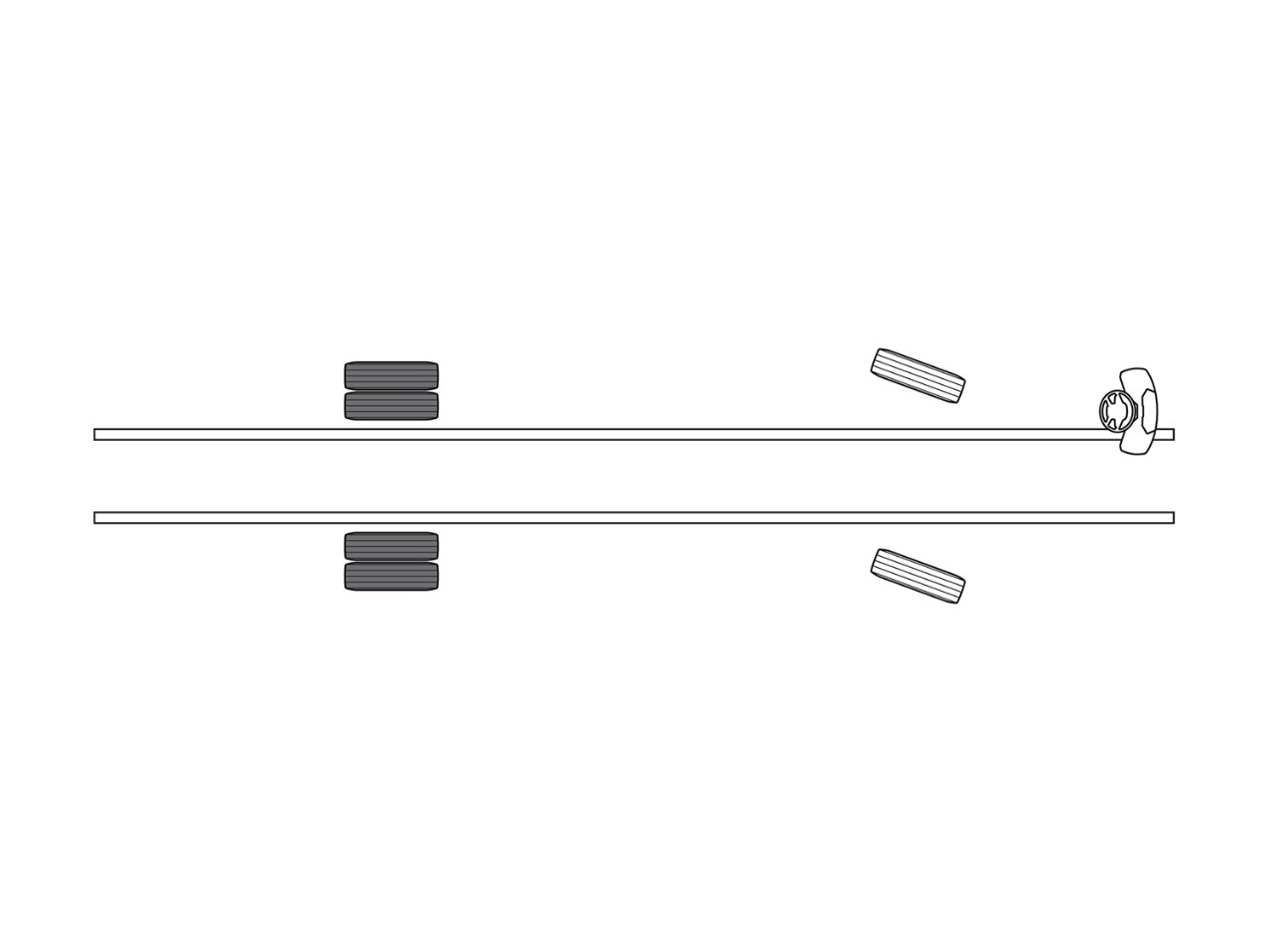

4x2 - independent front suspension or rigid axle

6x2 - independent front suspension or rigid axle

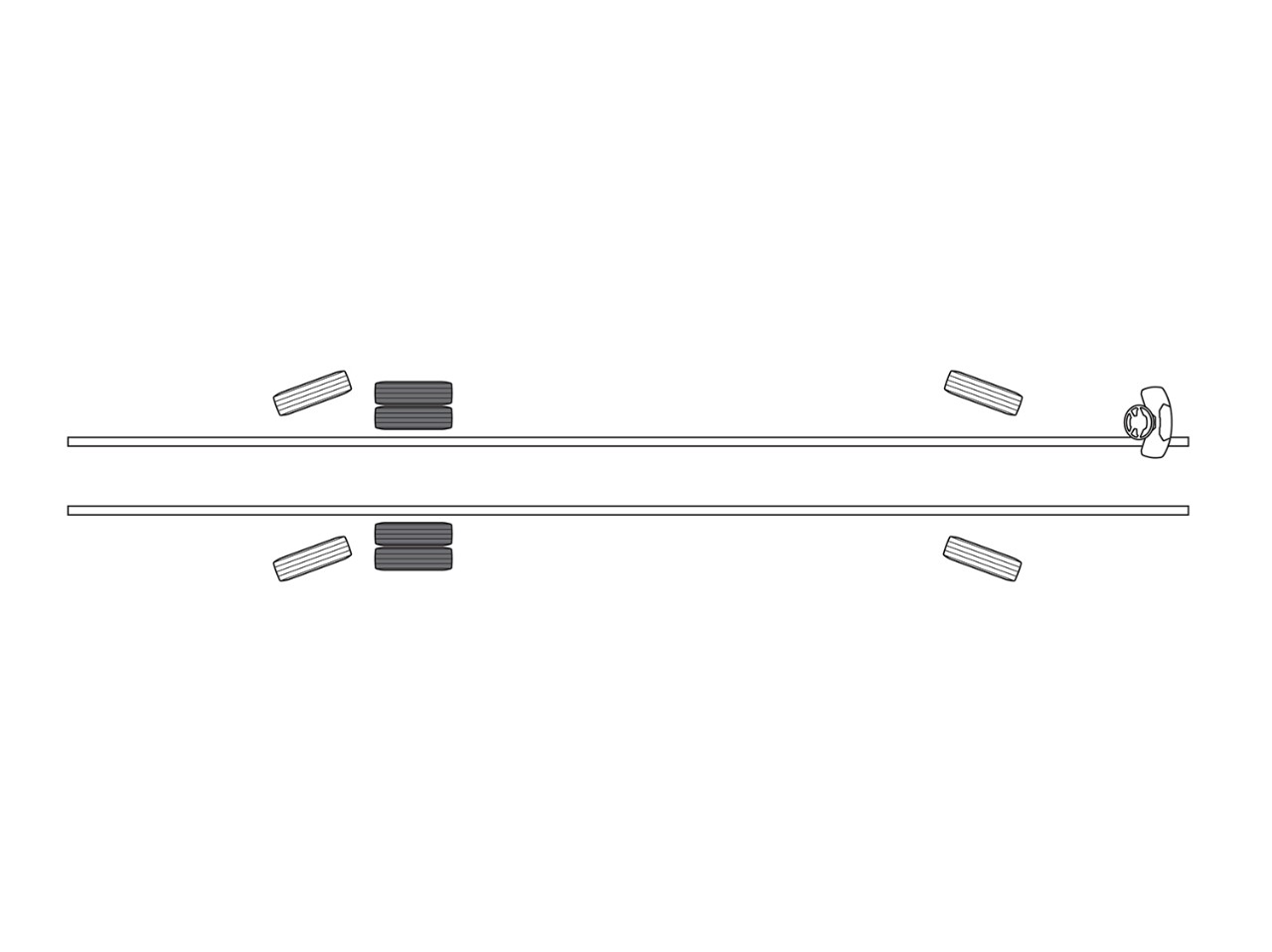

6x2*4 - independent front suspension or rigid axle

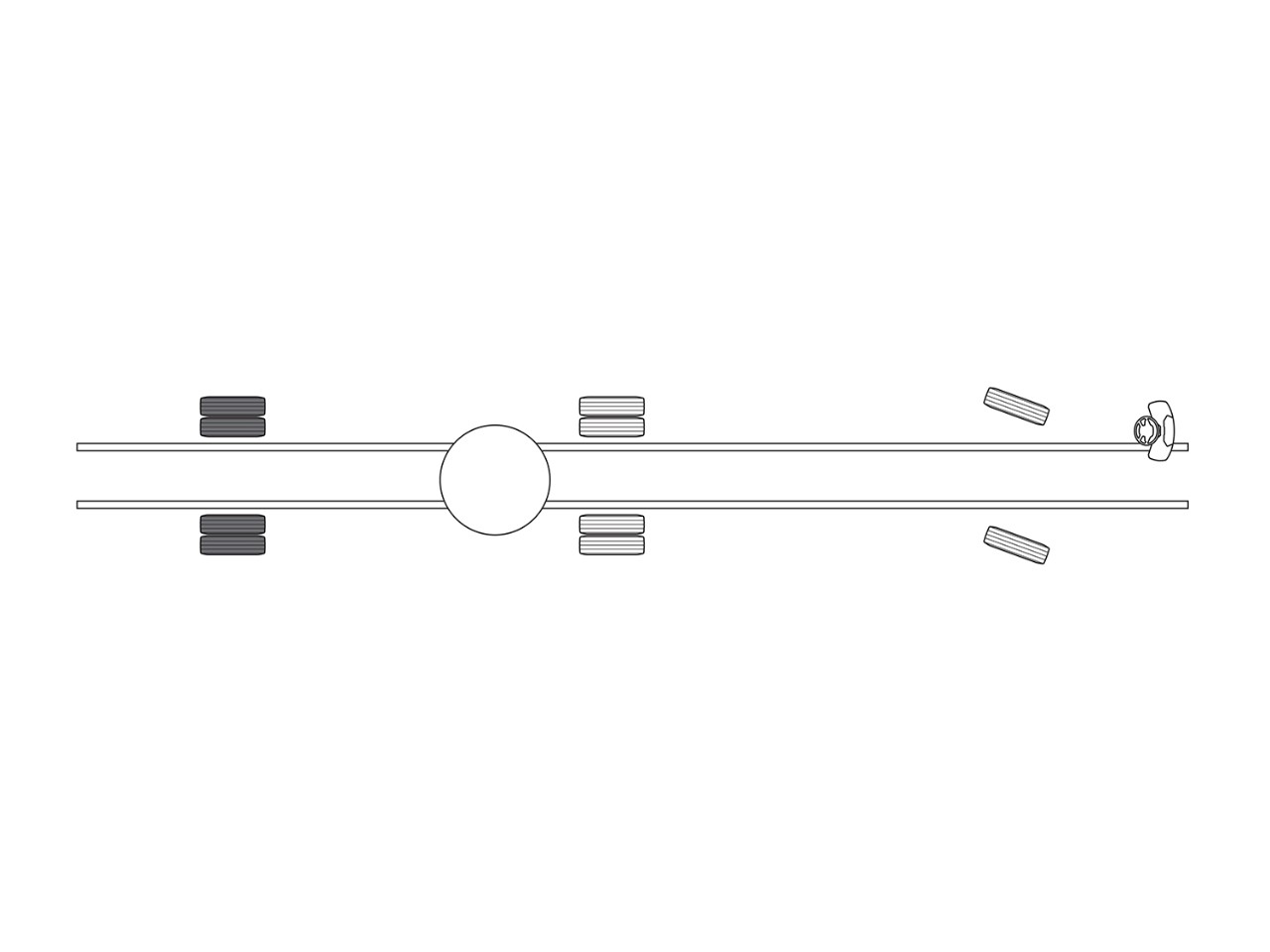

6x2/2 - (artic) rigid axle

Floor level

The flexibility of the Scania K-chassis enables a variety of floor levels.

Design features

The high floor Scania K-chassis meets the needs in urban operations on every continent. Fully designed and produced in-house, it is as energy-efficient as it is reliable and durable, making it the ideal coach platform.

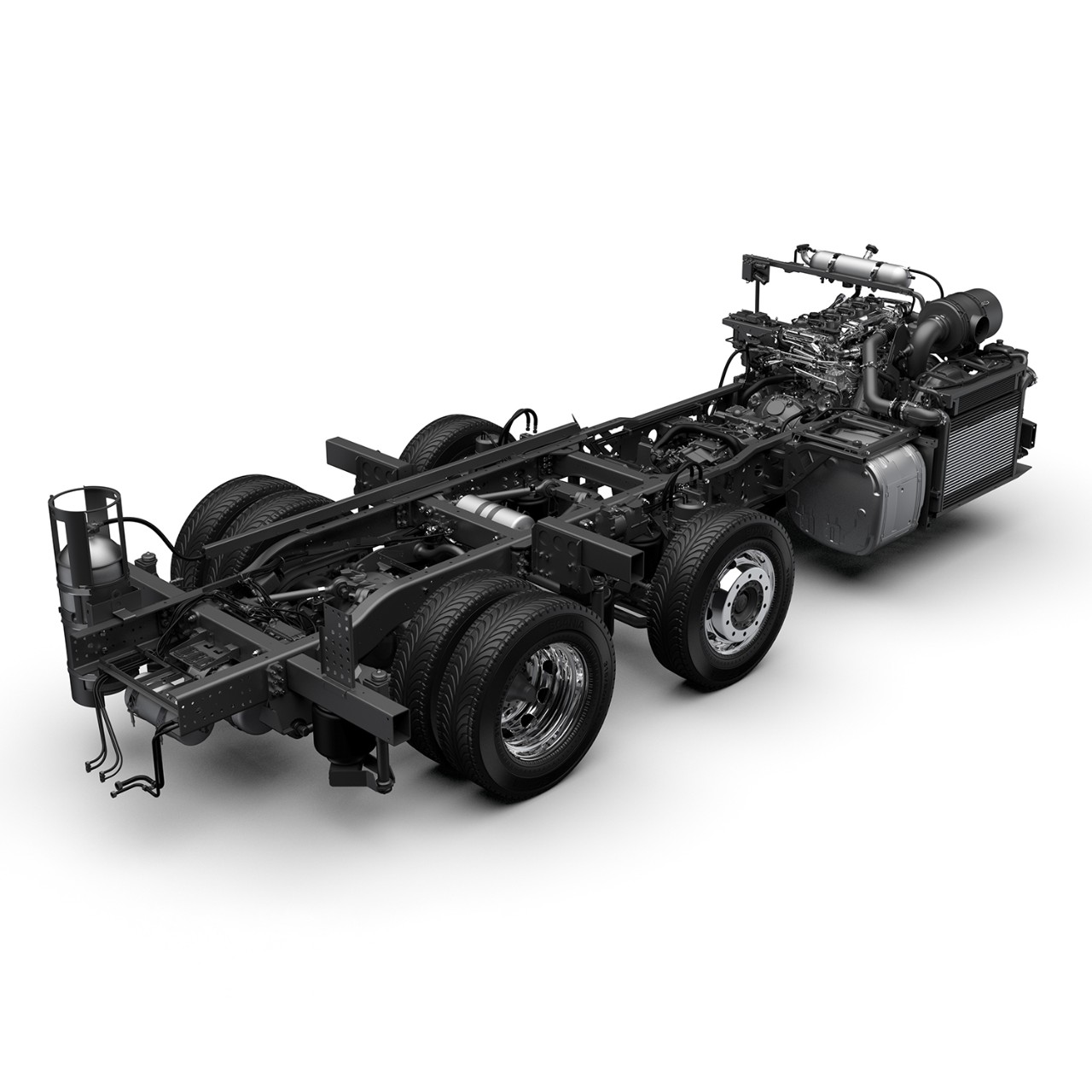

Quality chassis frame

The front axle, in combination with the ability to use wide tyres, enables a load capacity of 8 tonnes. This allows high passenger capacity and optimised weight distribution between the front and rear axles. Additionally, chassis weight is kept down without compromising robustness, contributing to low energy consumption.

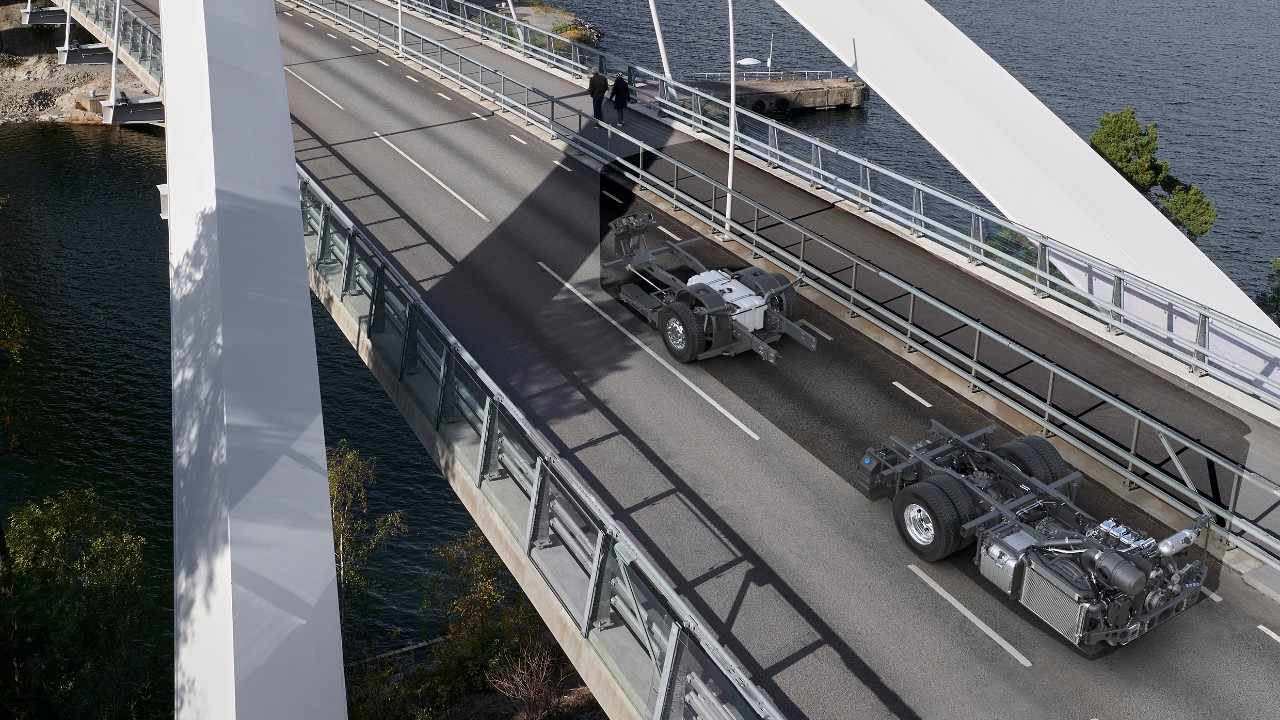

Advanced powertrain technology

The Scania K-chassis offer the very latest in coach powertrain technology - highly competitive fully electric powertrains, a rare plug-in hybrid electric option, and efficient conventional powertrains.

The powertrains are as efficient as they are dependable, durable and robust, all without compromising on power or performance.

Low- and zero emission options

Scania K-chassis are available with fully electric powertrains, plug-in hybrid electric powertrains, and with conventional powertrains that can run on several renewable and commercially viable fuels. This allows them to meet different operational needs and varying prerequisites on a global basis.

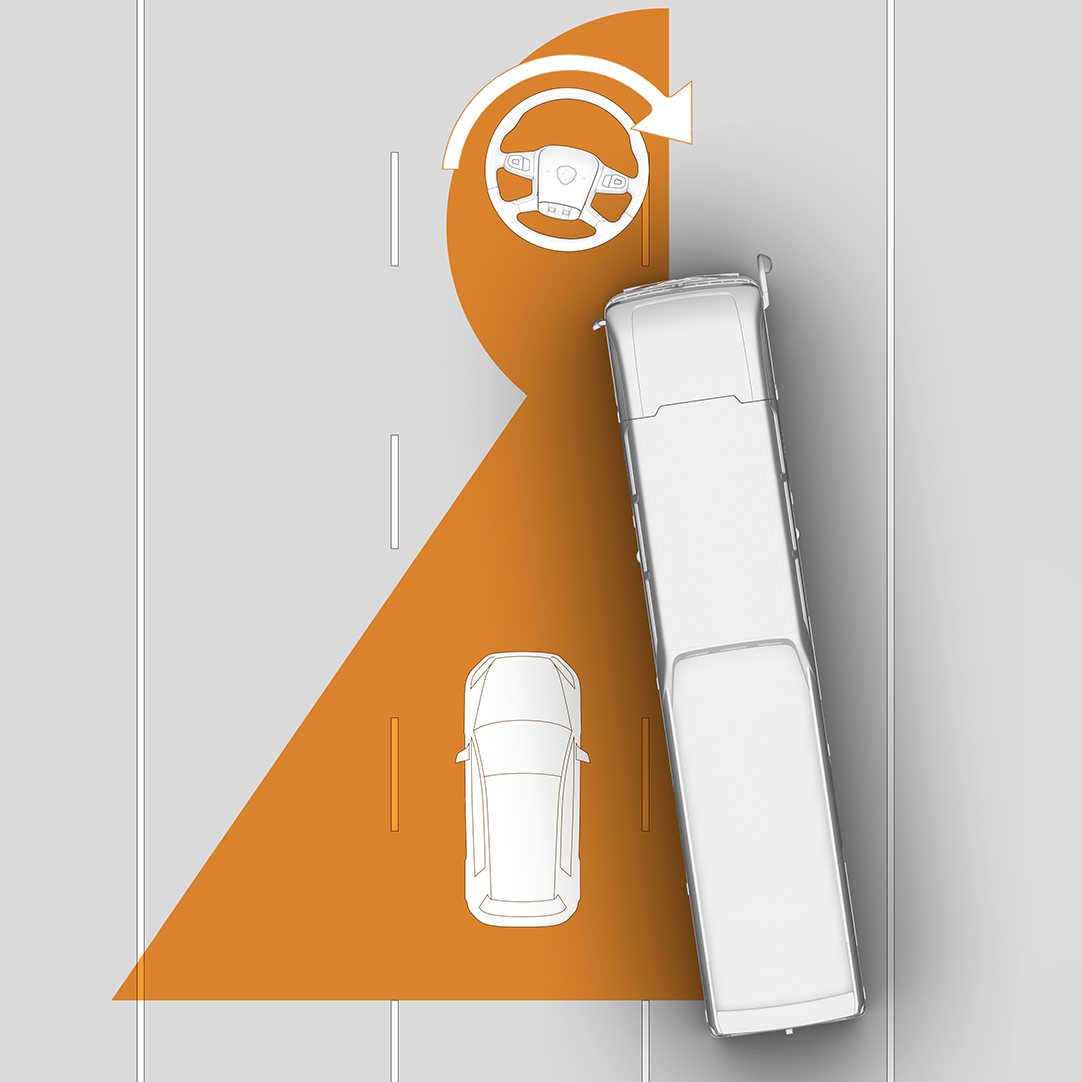

Safety in focus

Scania´s wide range of advanced driver assistance systems (ADAS) supports the driver, whether on the open highway or in busy city environments. The various functions increase road safety by keeping the driver alert and the vehicle in the right position, while also controlling the speed and distance from other road users.

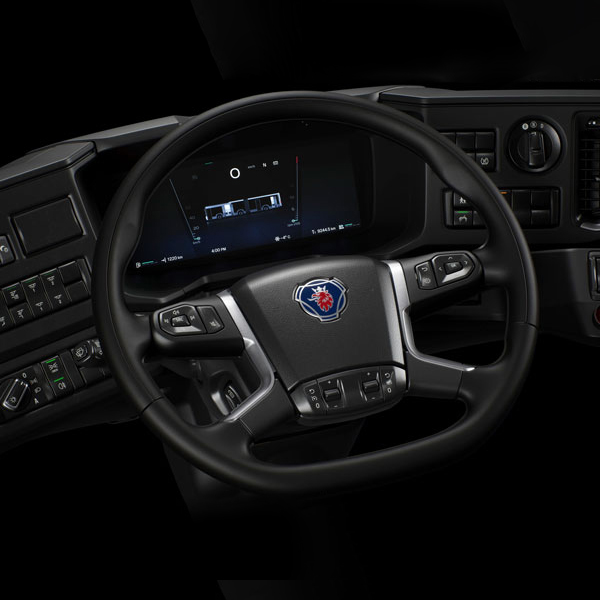

A first-class driving experience

An overall well-balanced vehicle, a powerful and reliable powertrain, good visibility, and a great turning radius make for excellent drivability. Additionally, the advanced driver assistance systems enhance control through assisted steering and braking, with high levels of ergonomics and comfort, the digital interface, and the overall quality feel further adding to the driving experience.

Unrivalled uptime

Well-designed and built on proven technology and components, the Scania K-chassis are both dependable and robust. Safety systems and digital services help prevent accidents, and sensitive and expensive components are protected in the event of a collision, avoiding costly and time-consuming repairs. Uptime services help minimise downtime and, when needed, remote diagnostics and excellent parts availability can rapidly get the bus back on the road.
